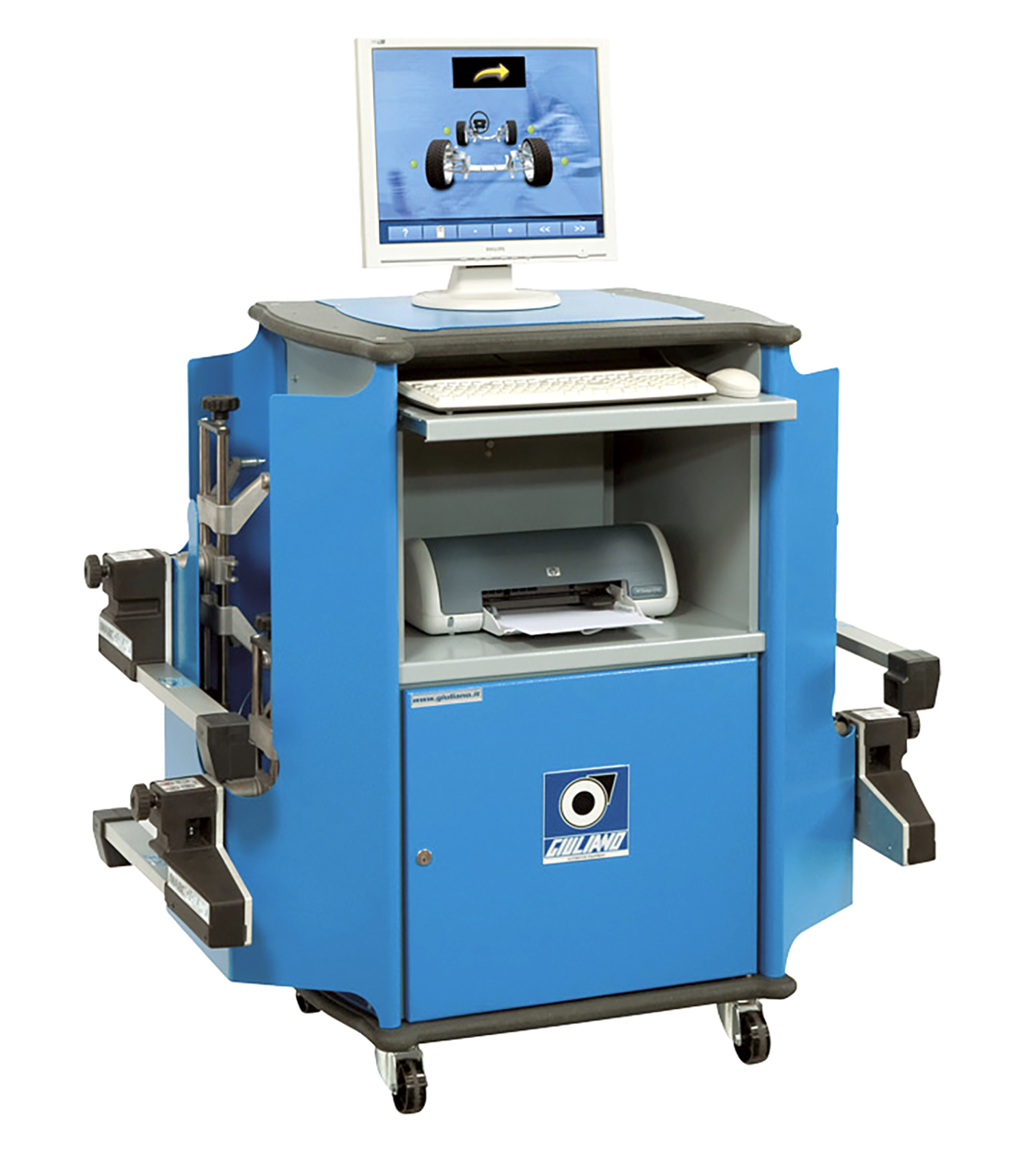

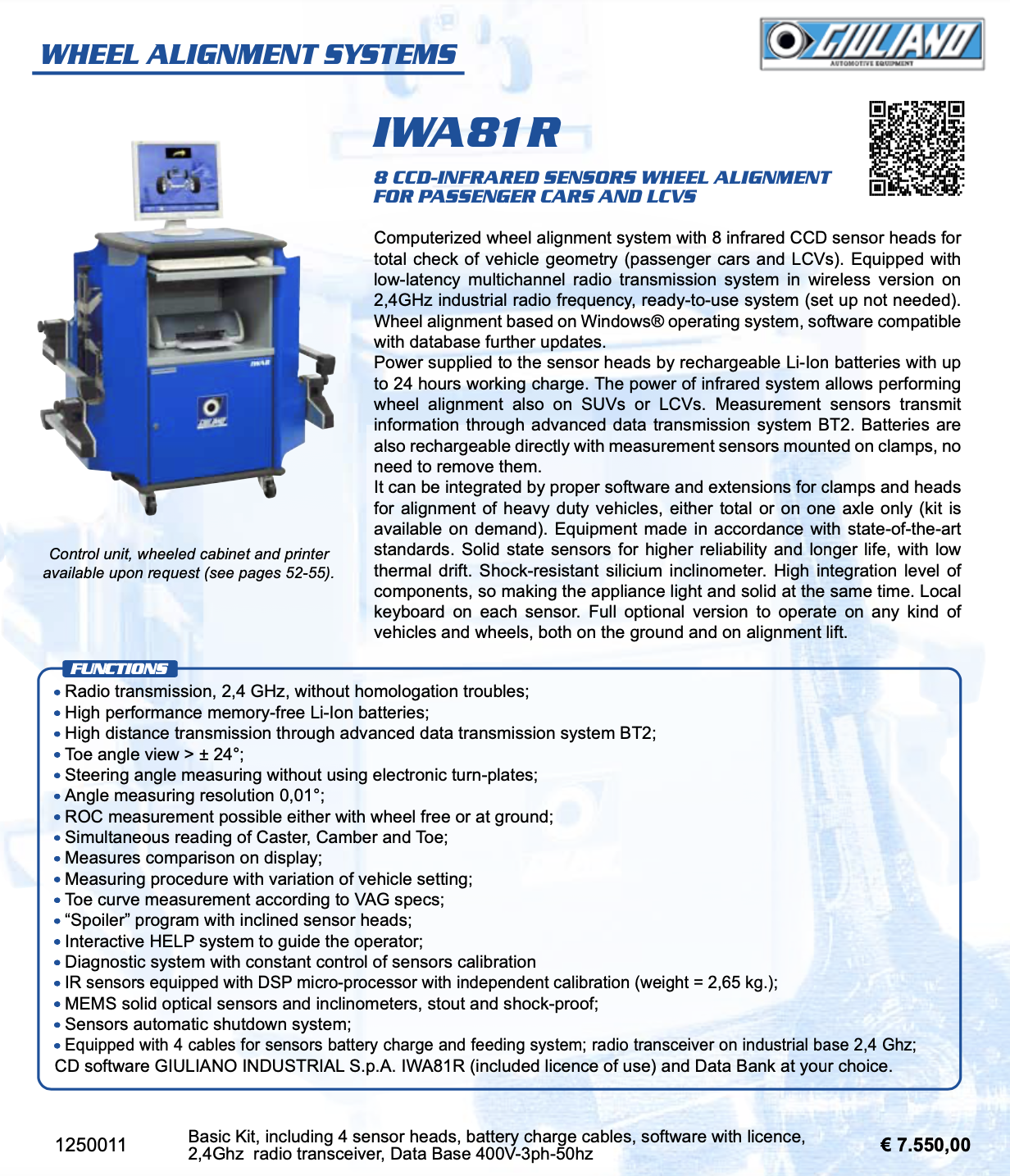

Giuliano IWA 81R

Standard Features –

Measuring system  CDD Infrared
Number of sensor CCD  8
Toe measuring range  > ± 24°
Camber measuring range  > ± 10°
Caster measuring range  > ± 20°
Power supply  230V/50-60Hz/1ph
Max absorbed power  500 W
Sensor weight (without clamp)  2.6 Kg
Data transmission  radio 2.4 GHz
PC  Pentium IV – 3.0 GHz
Operating System  Windows® XP
