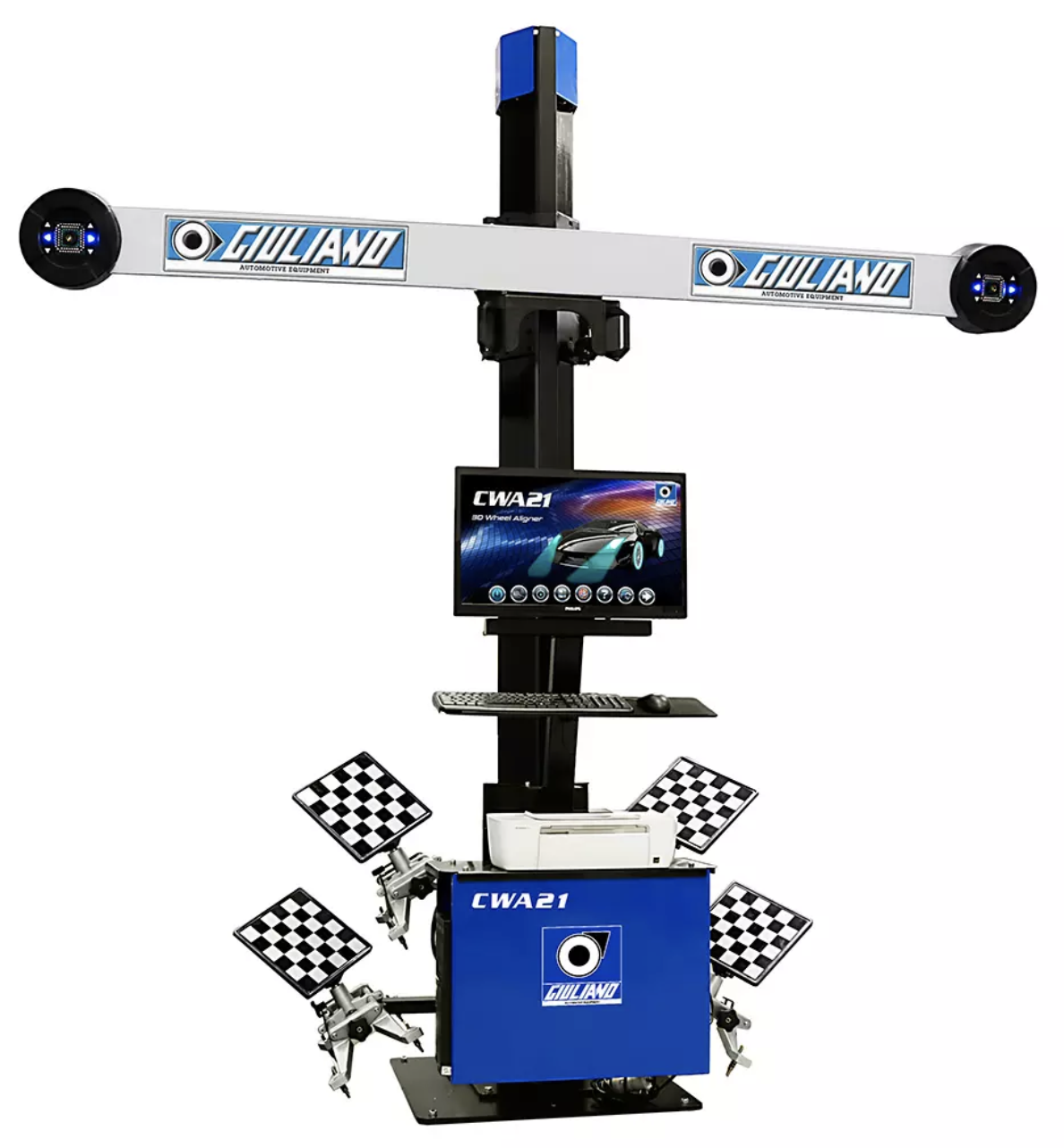

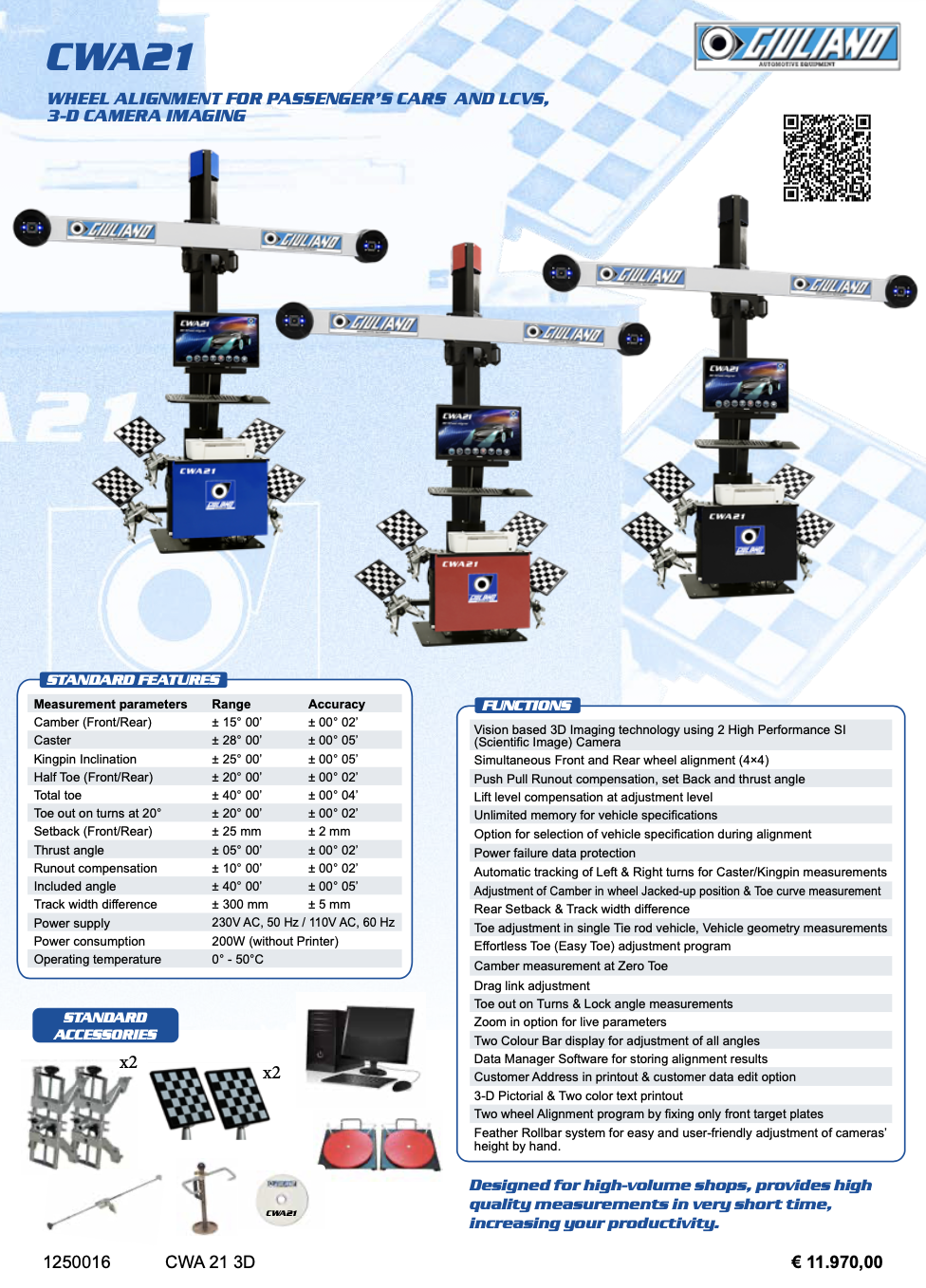

Giuliano CWA 21

Standard Features –

Camber (Front/Rear) ± 15°00′
Caster ± 28°00′
Kingpin Inclination ± 25°00′
Half toe (Front/Rear) ± 20°00′
Total toe ± 40°00′
Toe out on turns at 20° ± 20°00′
Setback (Front/Rear) ± 25 mm
Thrust angle ± 05°00′
Runout compensation ± 10°00′
Included angle ± 40°00′
Track width difference ± 300 mm
Power supply 230V AC, 50 Hz / 110V AC, 60 Hz
Power consumption 200W
Operating temperature 0 – 50°
